Aluminium Sliding Gate Frame 4.8m x 1.7m

Lead Time: 3–4 weeks

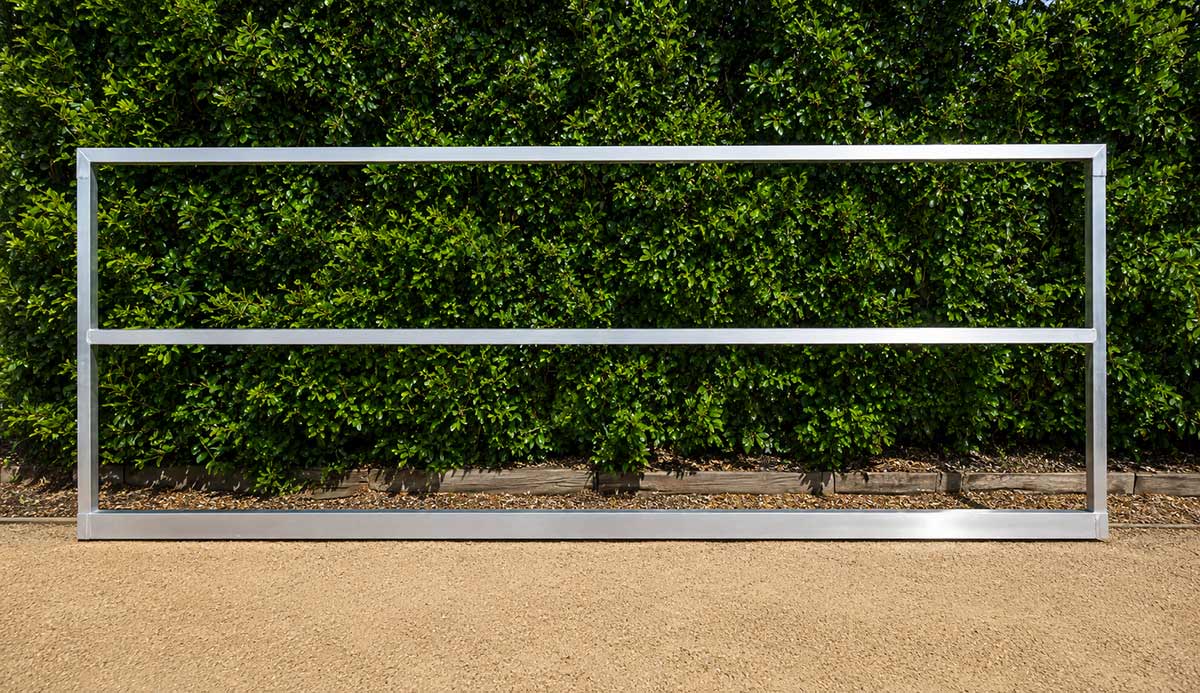

Raw aluminium sliding gate frame, fully welded and ready to clad. At 4.8m wide and 1.7m tall with a 300mm tail, this is our taller option for residential and commercial sites where privacy, security, or boundary definition are the primary drivers. Supply only. Fabricated to order at our Brisbane workshop and suited to fencing trade professionals and experienced DIY installers.

Key Features

• 50×50mm aluminium top, side, and horizontal support rails
• 100×50mm bottom rail for rigidity at the base
• Channel welded to back of top rail — ready for sliding block hardware
• Durable 3mm aluminium throughout
• Completely welded construction — no screws or rivets
• Lighter than steel and won’t rust, rot, or corrode
• Raw finish; can be painted or powder coated to any colour
• Suited to residential and commercial sliding gate applications

Specifications

Product Description

The 1.7m frame is the right call when the job calls for real height — front boundary gates, commercial entries, and residential applications where privacy and security are as important as the gate itself. At 4.8m wide with a 300mm tail, it covers standard double-width driveways and wider openings without needing a custom-width solution.

Built from 3mm aluminium throughout, it’s lighter than an equivalent steel frame and won’t rust or corrode over time. The 100×50mm bottom rail handles the load at the base, while the 50×50mm top and side rails keep the frame square and rigid across its full height.

The frame arrives raw and uncoated, ready to clad with your preferred infill — Colorbond sheeting, timber palings, aluminium battens or slats, decorative screens, and more. Paint or powder coat after cladding to match the fence line or the client’s colour spec.

The channel is pre-welded to the back of the top rail, so your sliding block hardware fits straight in without any modification on site.

Every frame is fabricated to order at our workshop in Virginia, North Brisbane, and dispatched completely welded. No site assembly required.

Compatible Infill Types

This frame is designed to be clad with your choice of infill material. Common applications include:

• Colorbond sheeting
• Vertical timber palings or slats
• Vertical aluminium battens or slats
• Decorative or laser cut screens
• PVC fencing materials

Infill materials are not included. This listing is for the gate frame only.

What’s Included / What’s Not

Installation Notes

Recommended for fencing trade professionals and experienced DIY installers. A sliding gate hardware kit is required for installation and is available separately in our store.

At 1.7m tall and 4.8m wide, this is a substantial frame. Confirm your post setup, footing specification, and hardware selection with your installer before ordering. All frames are made to order and cannot be returned once fabrication has commenced.

FAQ

What can I clad this frame with?

The frame accepts most standard infill materials — Colorbond sheeting, timber palings, aluminium battens, decorative screens, and PVC fencing products. Confirm internal frame dimensions with your cladding supplier before ordering.

Can this frame be automated?

Yes. The channel welded to the back of the top rail is designed for a sliding block, compatible with most sliding gate automation systems. A hardware kit and motor are purchased separately.

What hardware do I need?

A sliding gate hardware kit is required — covering roller wheels, guide rollers, and stoppers. Given the height and weight of this frame once clad, confirm your hardware selection is rated for the expected gate weight. Hardware kits are available separately in our store.

Can the frame be powder coated?

Yes. Supplied in raw (uncoated) aluminium, the frame is ready to paint or powder coat after cladding to any colour.

What post size is recommended?

A minimum 100×100mm post is a common starting point, but at 1.7m tall the post spec becomes more important — footing depth, gate weight once clad, wind exposure, and whether the gate will be automated all affect the right choice. Have your installer confirm before you order.

Lead Time + Returns

Lead time: 3–4 weeks from order confirmation. All frames are custom made to order at our Brisbane workshop.

Returns and refunds: All products are custom made to order and are non-returnable and non-refundable once fabrication has commenced. Please confirm your measurements and specifications before placing your order. If you have any questions, contact us before purchasing.
