Aluminium Sliding Gate Frame 4.8m x 1.4m

Lead Time: 3–4 weeks

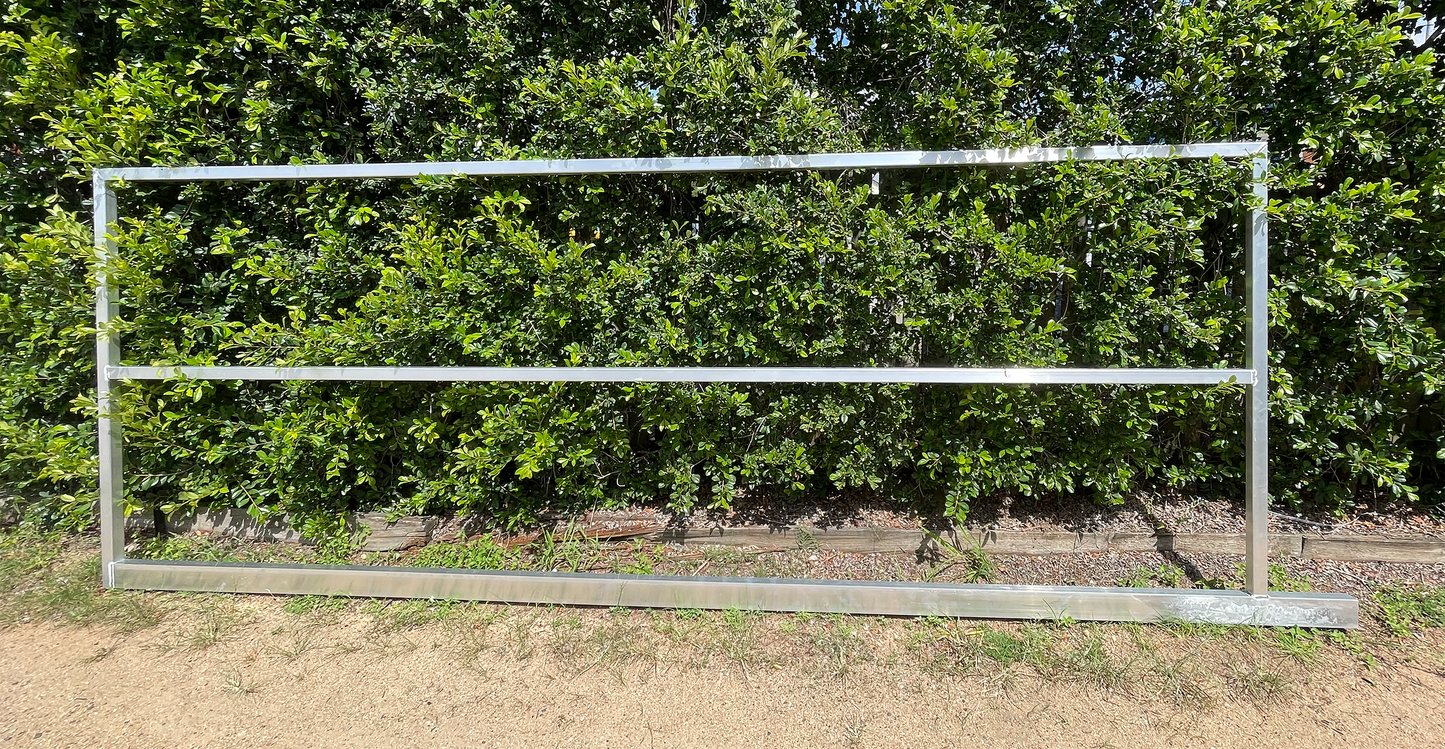

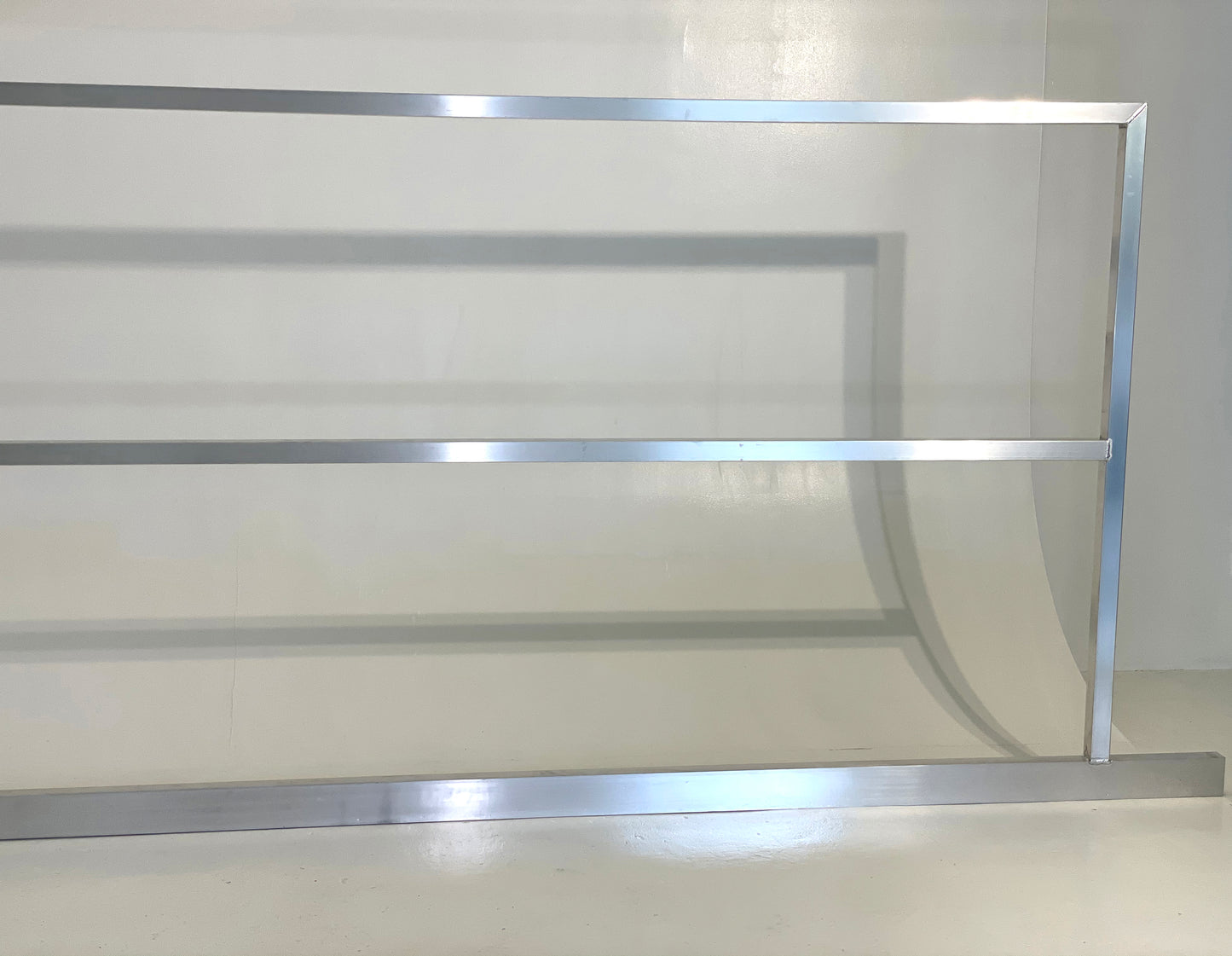

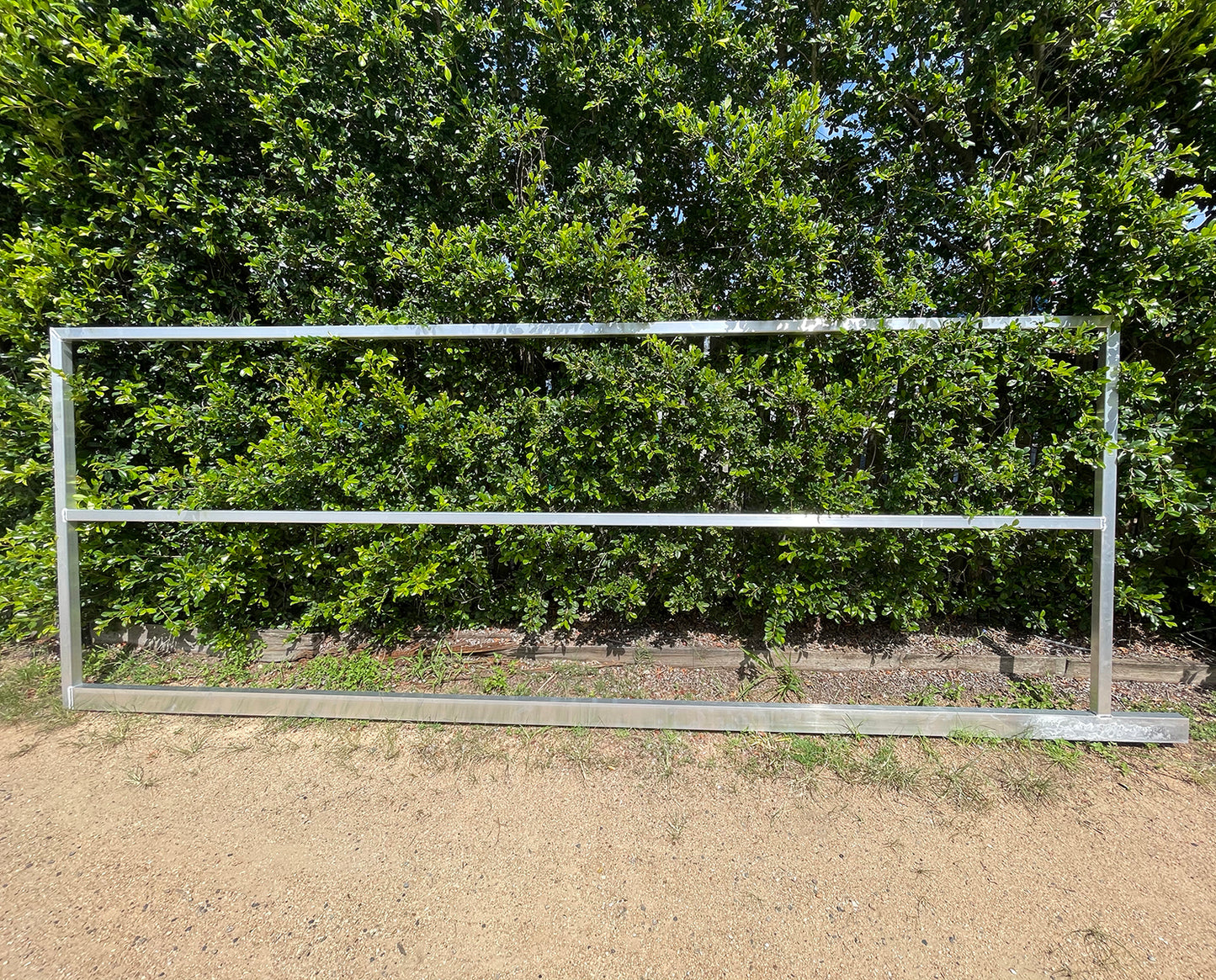

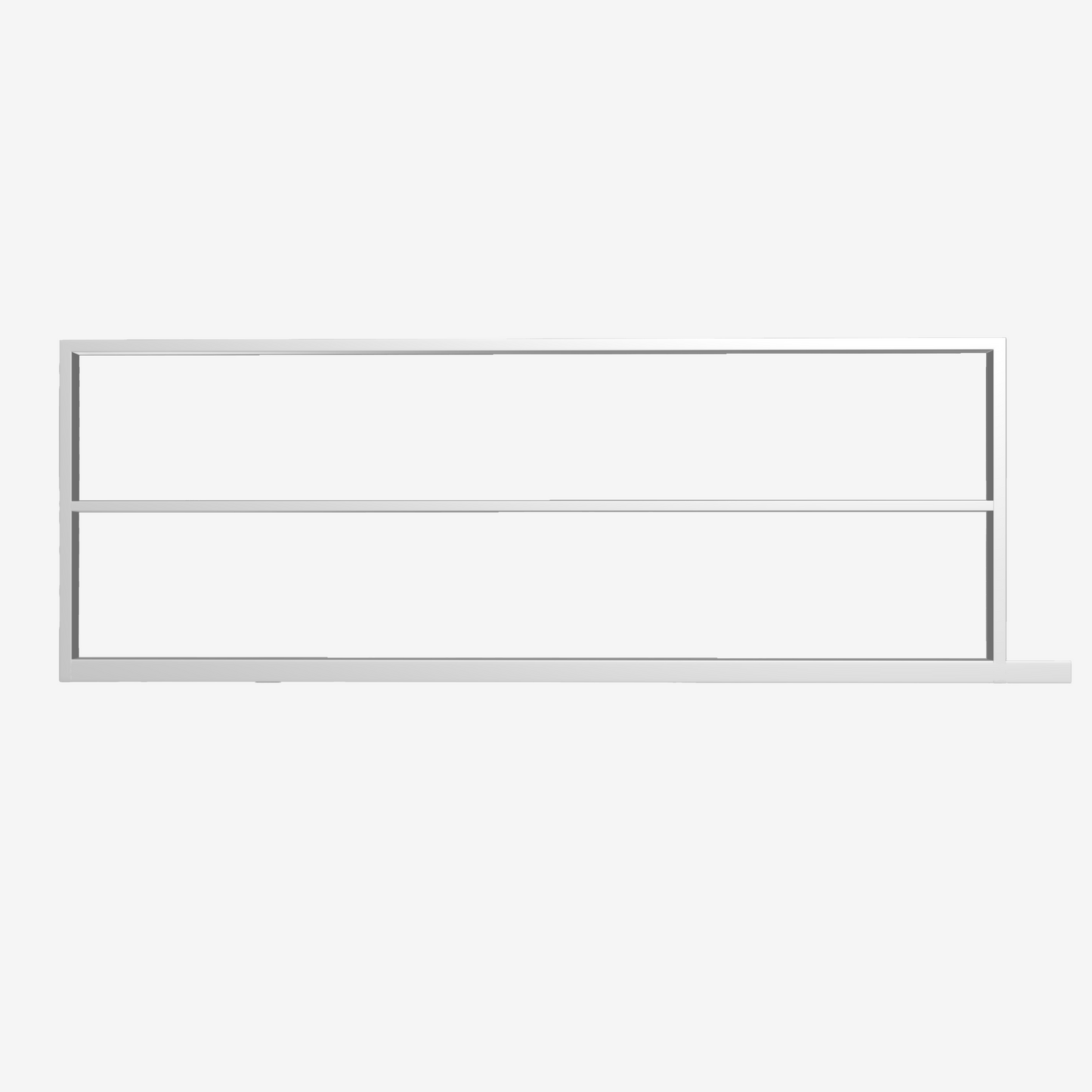

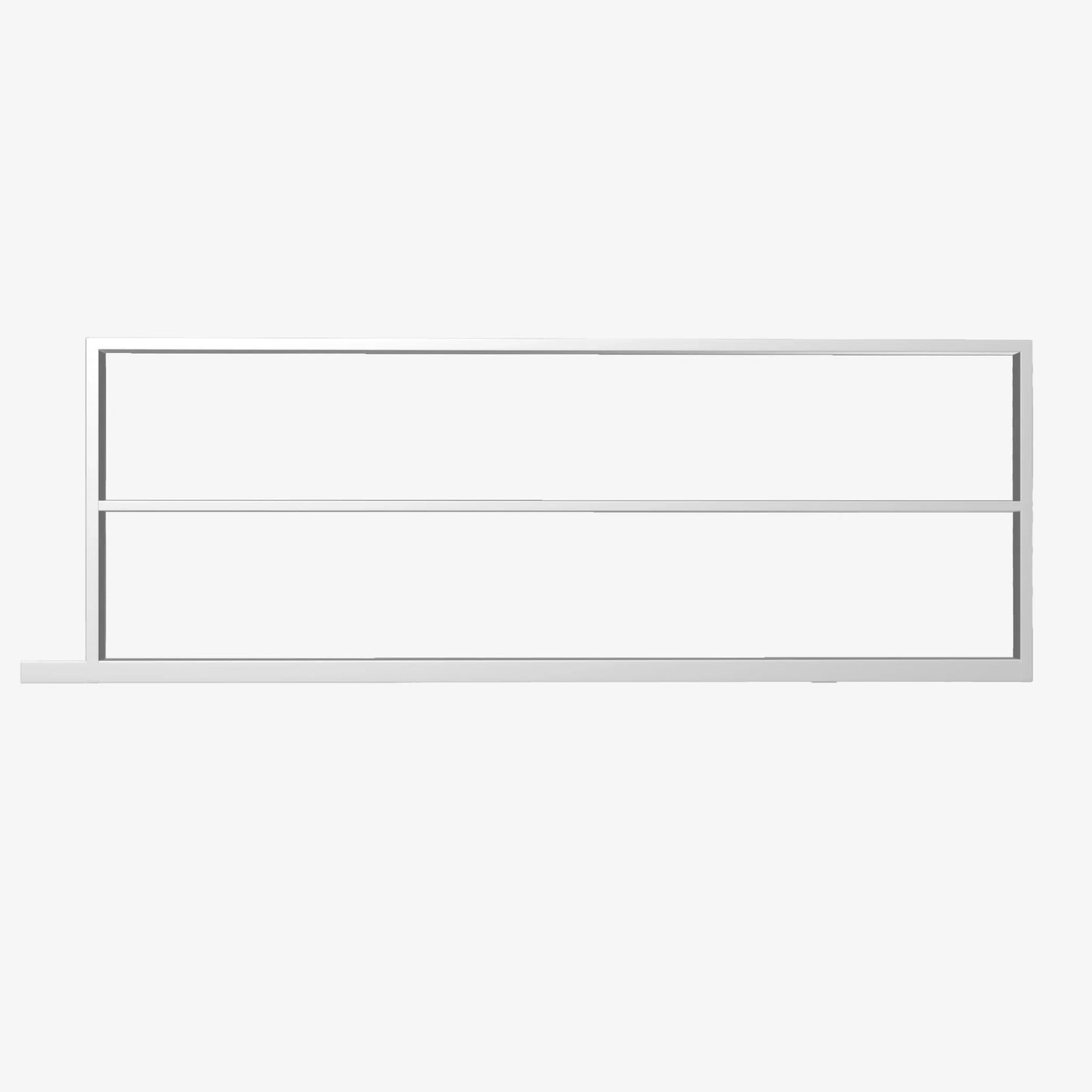

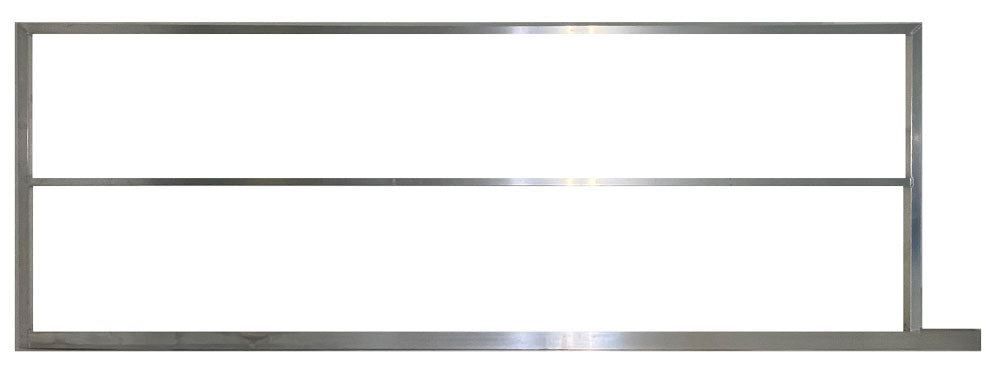

Raw aluminium sliding gate frame, fully welded and ready to clad. 4.8m wide with a 300mm tail, standing 1.4m tall for properties that need additional height without stepping up to a full pool or security fence. Supply only. Fabricated to order at our Brisbane workshop and suited to fencing trade professionals and experienced DIY installers.

Key Features

• 50×50mm aluminium top, side, and horizontal support rails
• 100×50mm bottom rail for added rigidity
• Channel welded to back of top rail ready for sliding block hardware
• Durable 3mm aluminium throughout

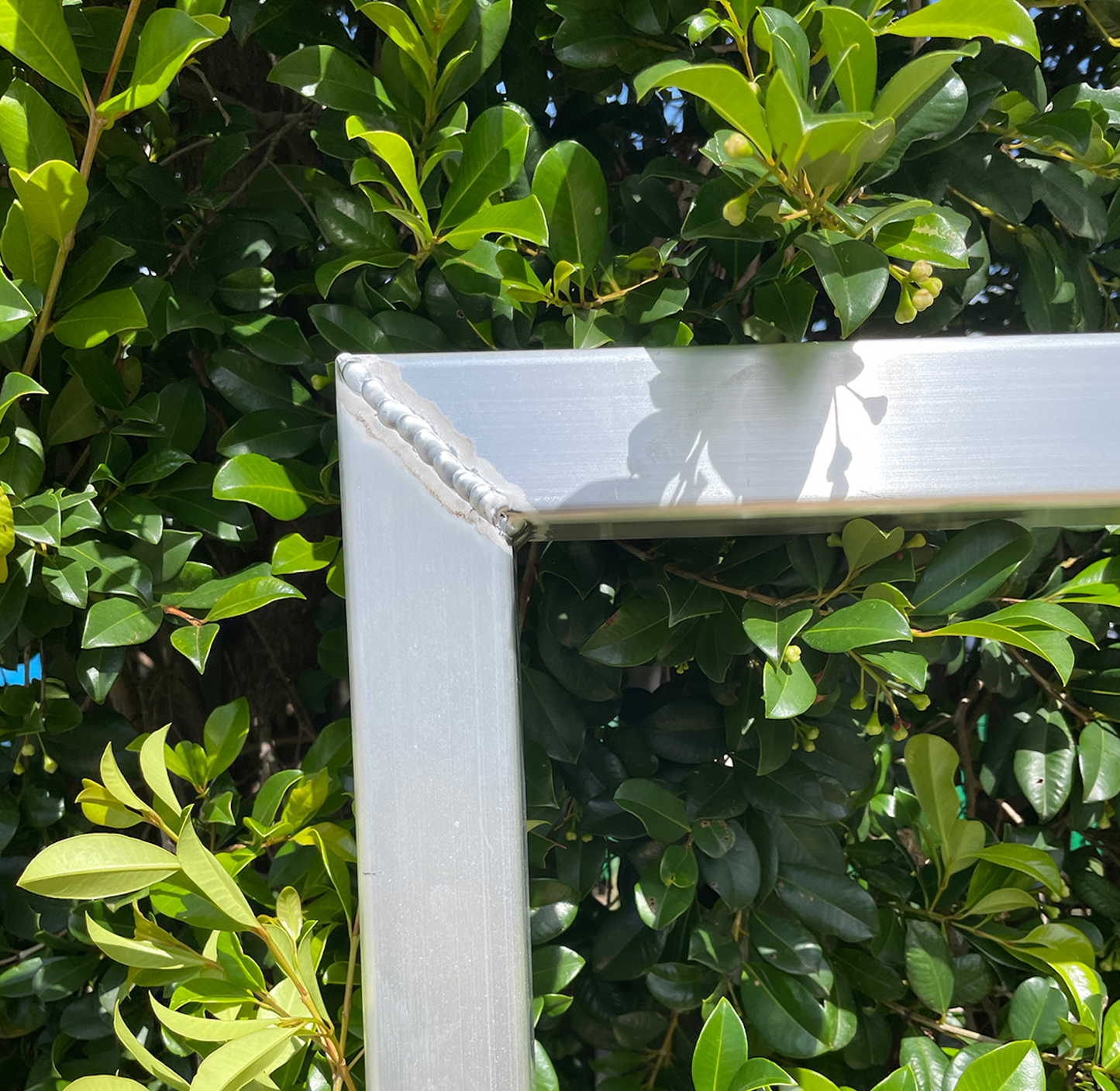

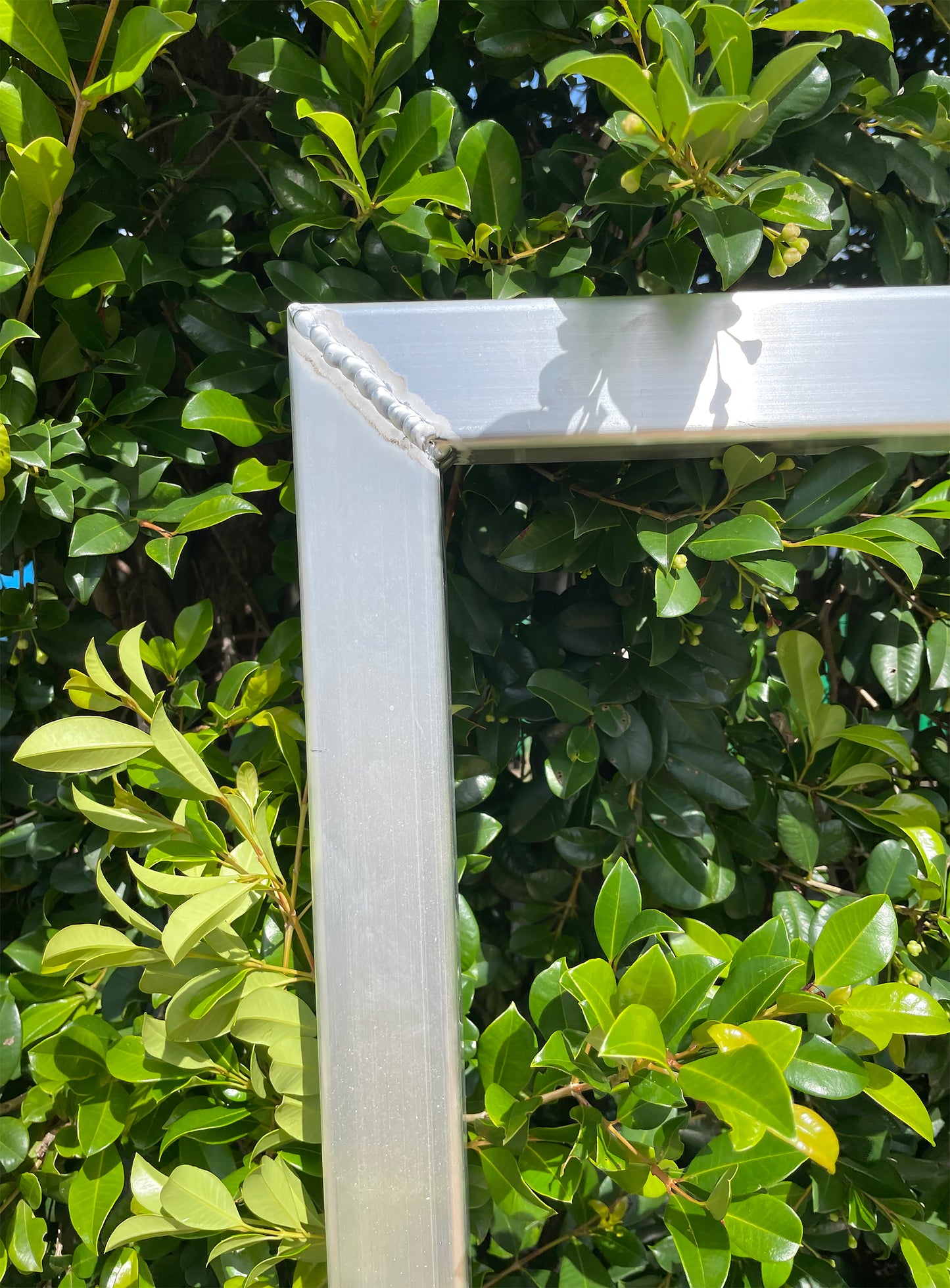

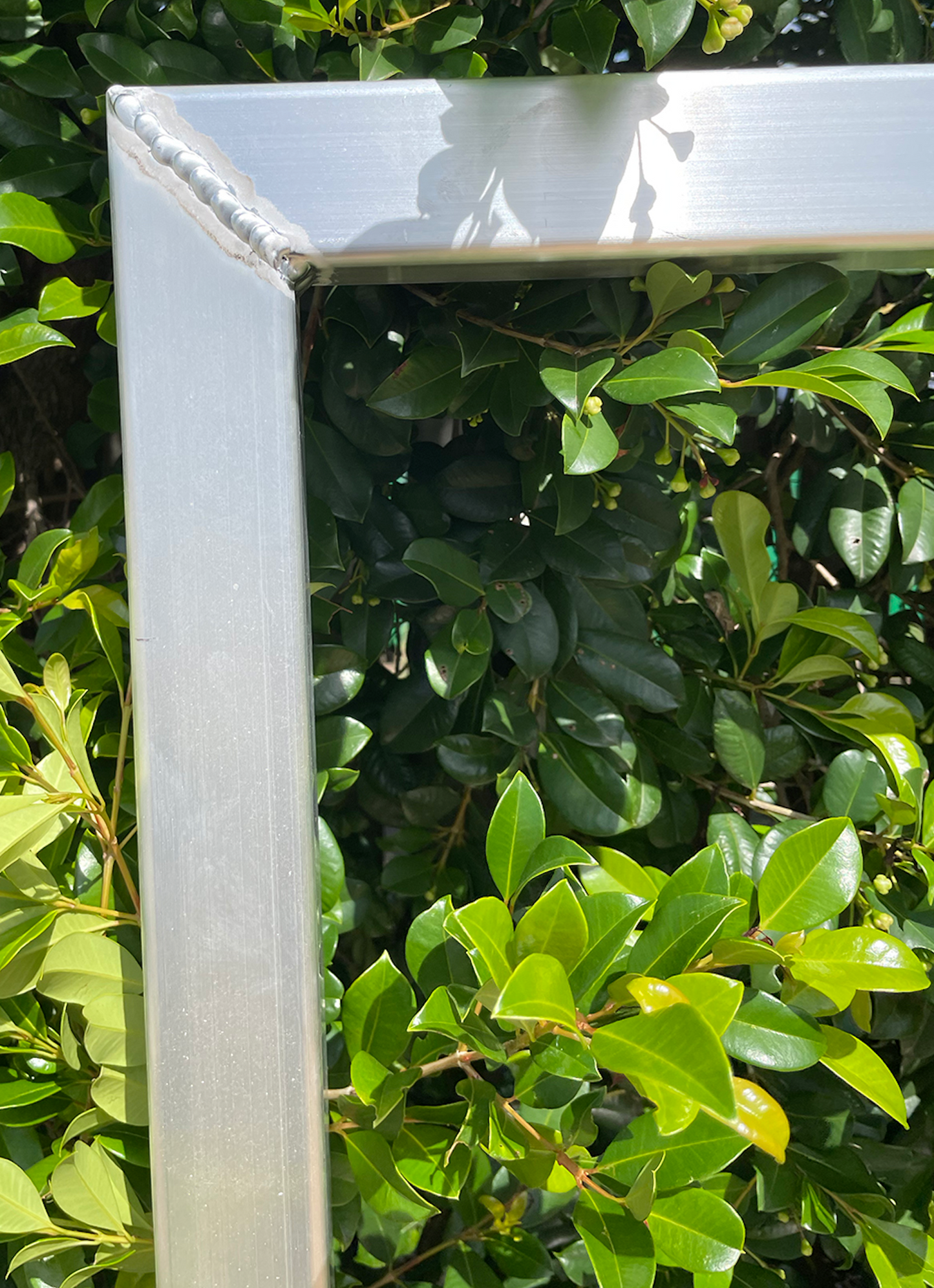

• Completely welded construction. No screws or rivets
• Lightweight aluminium that won’t rust, rot, or corrode
• Raw finish; ready to paint or powder coat in any colour
• Suited to residential and light commercial sliding gate applications

Specifications

Product Description

This aluminium sliding gate frame is built for projects that need a bit more height — at 1.4m tall and 4.8m wide with a 300mm tail, it suits double-width driveways, wider property entries, and sites where extra coverage is a priority without moving into pool or security fence territory. The heavier 100×50mm bottom rail keeps the base rigid, while the 50×50mm top and side rails hold structural strength without adding unnecessary weight.

The frame arrives raw and uncoated, so you can clad it with whatever infill suits the job — Colorbond sheeting, timber palings, aluminium battens or slats, decorative screens, and more. Once clad, it’s ready to paint or powder coat to match the rest of the project.

The channel is already welded to the back of the top rail, so your sliding block hardware drops straight in with no site modification required.

Every frame is fabricated to order at our workshop in Virginia, North Brisbane, and dispatched fully welded. No assembly on site, no rivets, no screws.

Compatible Infill Types

This frame is designed to be clad with your choice of infill material. Common applications include:

• Colorbond sheeting
• Vertical timber palings or slats
• Vertical aluminium battens or slats
• Decorative or laser cut screens
• PVC fencing materials

Infill materials are not included. This listing is for the gate frame only.

What’s Included / What’s Not

Installation Notes

Recommended for fencing trade professionals and experienced DIY installers. A sliding gate hardware kit is required for installation and is available separately in our store.

Confirm your opening width, post setup, and intended infill material before ordering. All frames are made to order and cannot be returned once fabrication has commenced.

FAQ

What can I clad this frame with?

The frame works with most standard infill materials including Colorbond sheeting, timber palings, aluminium battens, decorative screens, and PVC fencing products. Check the internal frame dimensions against your cladding supplier before ordering.

Can this frame be automated?

Yes. The channel welded to the back of the top rail is designed for a sliding block, which is compatible with most sliding gate automation systems. You’ll need to purchase a hardware kit and motor separately.

What hardware do I need?

You’ll need a sliding gate hardware kit — this includes the roller wheels, guide rollers, and stoppers needed to hang and run the gate. Hardware kits are available separately in our store.

Can the frame be powder coated?

Yes. Supplied raw (uncoated aluminium), the frame is ready to paint or powder coat once it’s been clad.

What post size is recommended?

A minimum 100×100mm post is commonly used for standard installations. Post size, footing, and fixing requirements should be confirmed by your installer or fencing contractor based on your site — gate size and weight, wind exposure, automation, soil conditions, and site layout all play a role.

Lead Time + Returns

Lead time: 3–4 weeks from order confirmation. All frames are custom made to order at our Brisbane workshop.

Returns and refunds: All products are custom made to order and are non-returnable and non-refundable once fabrication has commenced. Please confirm your measurements and specifications before placing your order. If you have any questions, contact us before purchasing.
