Do I Need a Guide Rail for My Sliding Gate?

When you order an aluminium sliding gate, there’s a high chance you’re going to be asked if you want a guide rail (or guide channel) to go along with it. Whether you need one depends on the hardware kit you use to open the gate. The hardware kit you choose is also dependent on a few things, which you can read about here.

Let’s look at what a guide rail is, and how to decide if you need one on your sliding gate.

What is a sliding gate guide rail?

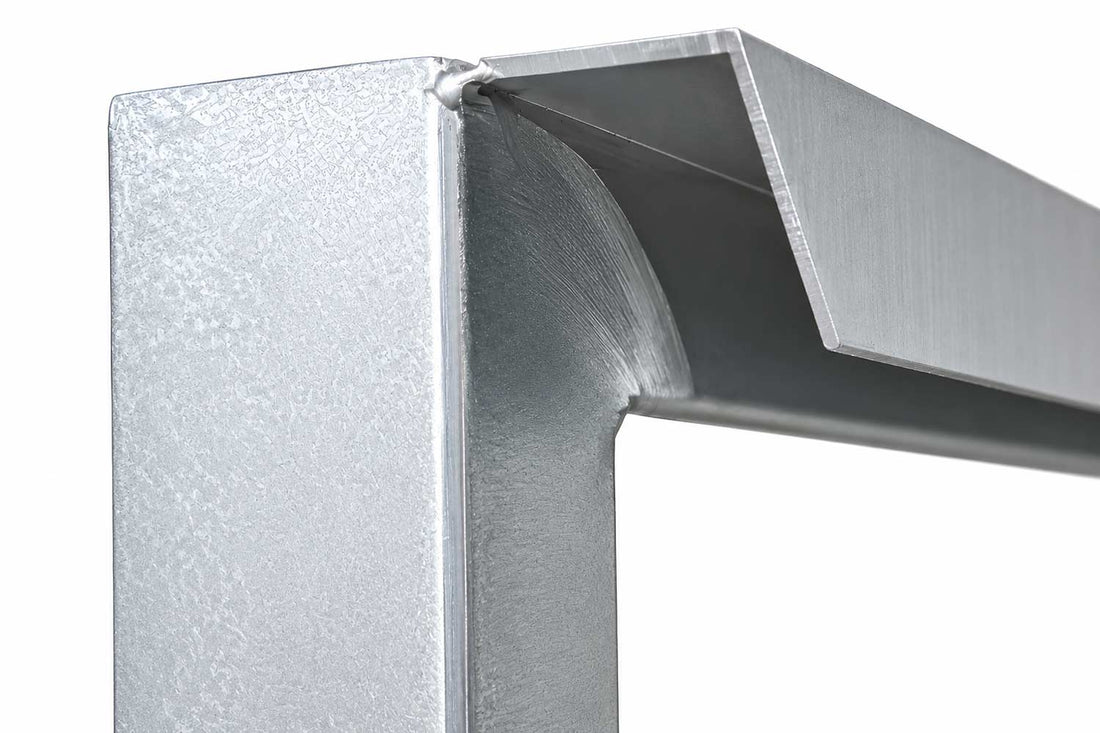

A guide rail is a length of channel welded to the back of the gate's top rail, running along the frame. For certain setups, it can also be welded to the front of the rail or to a mid rail. It's a fixed part of the gate itself, not a separate accessory you bolt on later. This means it needs to be factored in at the fabrication stage. That’s why it’s always a question you get asked when ordering your sliding gate.

The channel is there to receive another component, which is where the sliding block hardware kit comes in.

How does the guide rail work?

The guide channel works together with a sliding block. The block sits inside the channel and travels along it as the gate opens and closes, keeping the top of the gate upright and tracking straight for the full length of its run.

This pairing is what gives the sliding block system its stability. It's the reason it handles raked driveways and uneven ground better than other setups, because the block and channel keep the gate guided from the top rather than relying on the ground level staying consistent.

The two only work as a pair. A guide channel without a sliding block, or vice versa, doesn't achieve anything on its own.

Do you always need a guide rail?

No. A guide rail is only required if you're using the sliding block hardware kit. If your gate is going with guide rollers instead, there's no channel needed at all. The rollers do the guiding work from a post beside the gate rather than from the top rail.

So the real question isn't "does my gate need a guide rail", it's "which hardware kit suits my job". That comes down to things like whether the driveway is level or raked, and whether the gate is framed or face-mounted.

We've covered that comparison in more detail here: Sliding Block vs Guide Roller Hardware Kit. If you already know your gate needs a guide channel, just let us know when you order your frame and we'll have it welded on.

What happens if you get it wrong

If a gate that needs a sliding block set-up ends up without a guide channel, the top rail has nothing to keep it guided as it travels.

It's a straightforward thing to avoid, but only if it's factored in before the gate is fabricated. Once the frame is welded up without a channel, it's not as straightforward to add one later.

Ordering it with your frame

When you order your frame through our gate builder or our quotation form, you’ll specify whether you need a guide rail or not. If you’re going to be using a sliding block hardware kit, you need the guide rail. If you’re using a guided roller hardware kit, there’s no need to add the guide rail to your order.

At Top Screens, every frame is custom made to order, so there's no stock item to swap out if the hardware kit changes down the track. Let us know before production if you need that guide rail.

Get the right hardware for your job

We can also supply the hardware for your aluminium gate. Check out our Sliding Block Hardware Kit and the guide rollers kit, or get in touch for a custom quote if you're not sure which setup suits your job.

Quick FAQ

Can a guide rail be added after the frame is made?

Not easily. It's welded to the top rail as part of fabrication, so it's best confirmed before your frame is ordered and powder coated rather than added on afterwards.

Does every sliding gate frame come with a guide rail as standard?

No. It's only included when you're specifying it for a sliding block hardware kit. Gates set up for guide rollers don't need it.

Is a guide rail the same on every gate?

The channel itself is a standard C-channel profile, but where it sits can vary depending on the gate's size and design. If you're not sure what your job needs, run it by us when you order.
